Electric Stacker DOUBLE-M

Electric Stacker DOUBLE-M

A double-deck pallet stacker for higher handling and ramp use.
BACK TO WORK: -20% discount
11.950 € 14.340,00 € VAT included
5
Five year warranty
+
Options

🔥 -20% additional discount with PALLIT20

Availability: Translation missing: en.general.icons.icon_check_circle icon Only 1 left!

Free delivery: Monday, 22 September

Questions? We’re here to help you

0800 29 29 130

Our electric reach stacker with initial lift DOUBLE-M is suitable for storing and retrieving goods from shelves. The reach stacker is equipped with an initial lift function and can therefore be loaded with double pallets up to 120 mm.

  • Lifting height: Choose your required height!
  • Initial lifting function: offers the possibility of double pallet loading
  • Free lift function: Maneuvering goods even with low ceiling heights - lifting pallets without changing the overall height
  • Load capacity: 1,500 kg
  • Battery: Powerful with 240 Ah capacity
  • Fork length: With the standard length of 1,150 mm, ideal for working with Euro pallets
  • Small turning radius: of 1,575 mm allows use in narrow warehouse aisles
  • Use: Designed for medium distances, with a maximum driving speed of 5.8 km/h when loaded
  • Battery level indicator: remaining battery life always in view
  • Castors: More stability thanks to tandem castors made of robust polyurethane (PU)
  • Electromagnetic braking system for wear-free braking
  • Safety features: such as emergency stop switch and rounded transport forks

Features

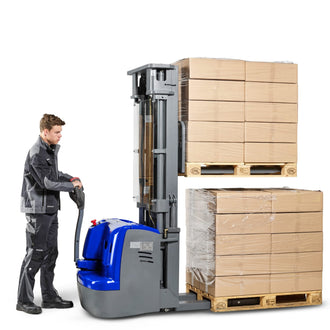

Double pallet capacity

Load two pallets up to 120 mm with initial lift function.

Ergonomic and safe

Battery level indicator, electronic ignition lock and safety button for emergencies are quick and easy to reach.

load capacity up to 1,500 kg

The DOUBLE-M shines with more load capacity and longer operating time compared to its little sister DOUBLE-S.

Everything under control

All functions are controlled via the buttons and levers at the top of the drawbar.

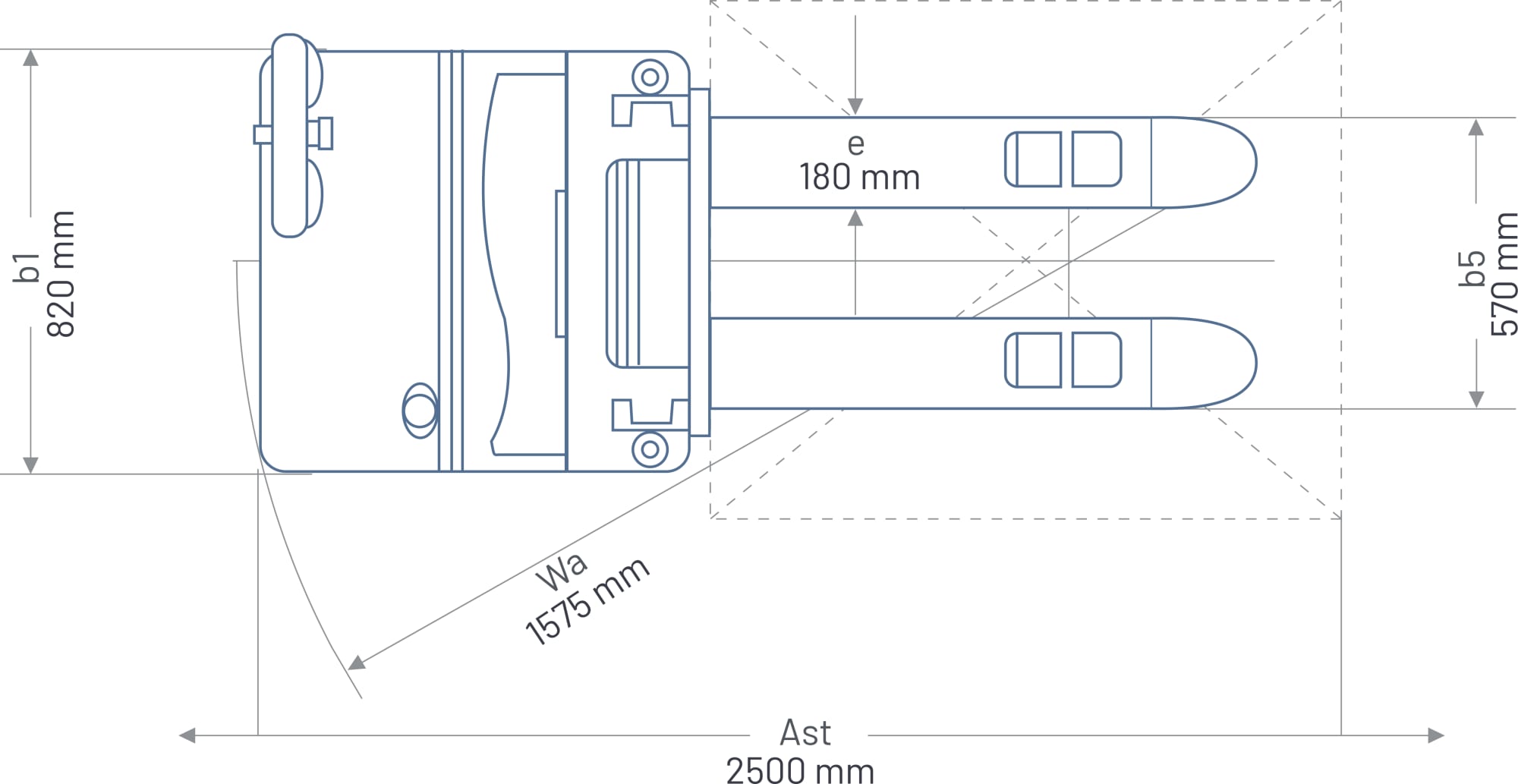

Compact turning circle

Easy navigation in narrow aisles with a 1575 mm turning circle.

Ideal fork length

1150 mm forks, ideal for standard Euro pallets.

Technical data

General
Capacity
1500 kg
Capacity at maximum lift
1250 kg
Weight
1205 kg
Forklift licence needed
no
Sound level EN-12053
65 dB
Material
steel
Chassis surface
powder coated
Colour
blue
Seal
CE
Warranty
5 years warranty Plus
SKU
10005052-305
Brand
Pallit
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
250 mm
Steering wheel width
70 mm
Fork roller type
tandem
Load roller wheel diameter
80 mm
Fork roller width
70 mm
Lift
Lift height
3000 mm
Free lift
no
Free lift height
1550 mm
Lift motor power
3 kW
Lift speed, unladen
0,14 m/s
Lowering speed, unladen
0,12 m/s
Mast type
Duplex
Lift type
electric
Drive
Drive motor power
1,2 kW
Drive motor type
AC motor
Travel speed, unladen
6 km/h
Drive
electric
Brake
electromagnetic brake
Battery
Battery type
lead batteries
Battery capacity
240 Ah
Voltage
24 V
Battery voltage
24 V
Battery quantity
1
Battery weight
220 kg
Battery dimensions
675x254x500 mm
Battery charger
external charger
Delivery
Delivery
special transport
Delivered as
on pallet
Delivery requirements
Ramp or forklift required on site to unload from lorry
Links
Mast height table
Capacity chart
Load center diagram
Product brochure
Product manual

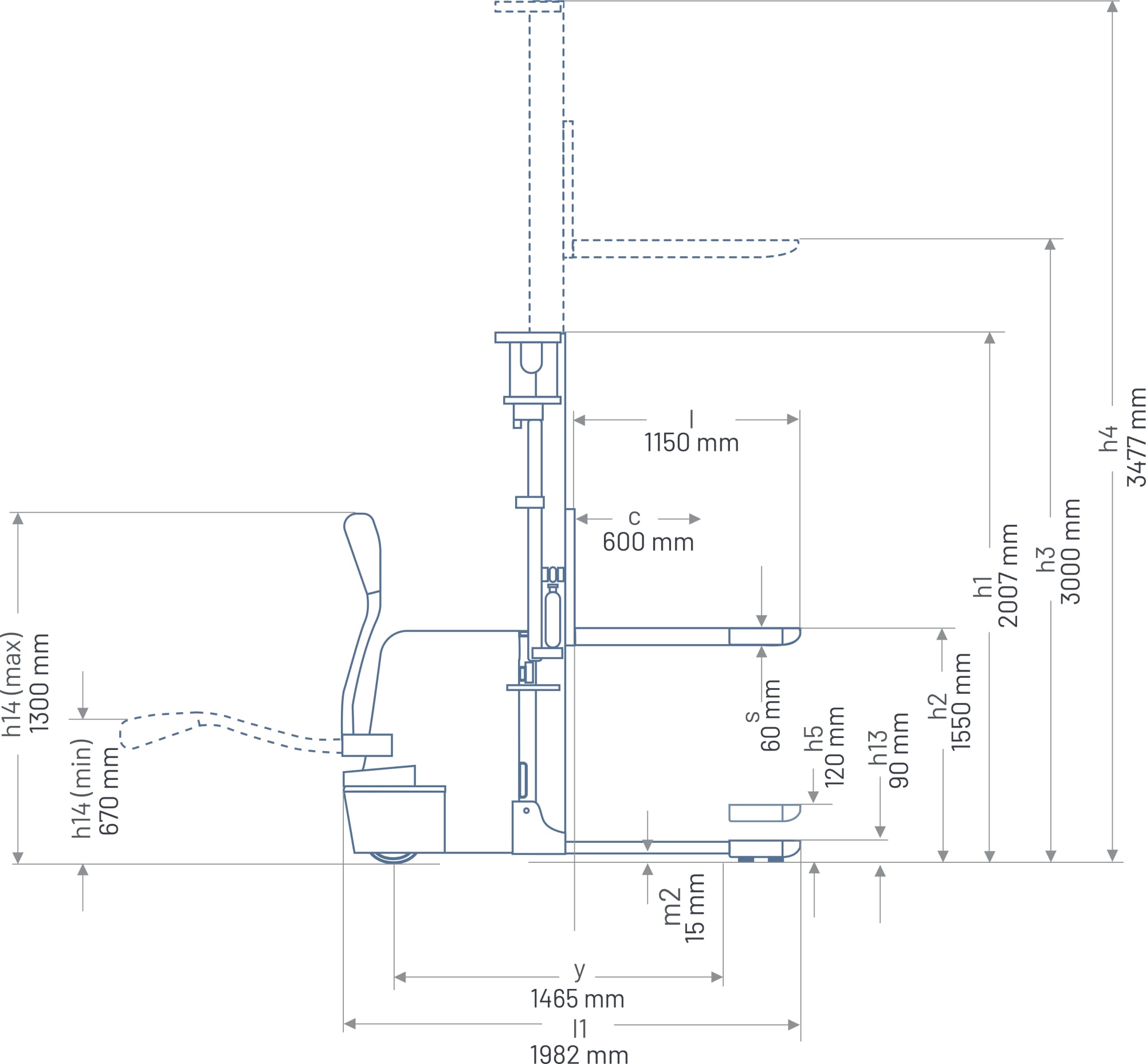

Dimensions

  • Capacity
    Fork length
    Free lift height
    Height, lowered
    Lift height
    Weight
    Wheels material
    Battery capacity
    Battery type
    Initial lift height
    Load centre
    Warranty
    Free delivery
    Customer Reviews
    Price

  • Electric Stacker DOUBLE-M

    1500 kg
    1150 mm
    1550 mm
    2007 mm
    3000 mm
    1205 kg
    Polyurethane (PU)
    240 Ah
    lead batteries
    120
    600 mm
    5 years warranty Plus
    Monday, 22 September
    from 11.950 € 14.340 € VAT included
