Electric Pallet Stacker SMART-L

Name: Electric Pallet Stacker SMART-L
Brand: Pallit
SKU: 10010444-2594
Price: 4508.0 EUR
Availability: InStock

Reliable all-rounder at a low price for occasional use.

BACK TO WORK: -20% discount

4.508 € 5.409,60 € VAT included

lifting height

Available from: Saturday, 17 January

📢 In use by 92+ companies across Europe

The SMART-L electric high lift truck is an ideal solution for efficient work on high racks and in narrow storage aisles. With its duplex mast and compact design, it is ideal as a truck-mounted device and offers flexible lifting height options.

Lifting height: Optionally 2.6 m or 3.5 m
Load capacity: 1,500 kg
Gel battery: Powerful for longer operating time and quick availability
Transportable: Low weight of 657 kg or 570 kg, ideal for transport in a truck
Integrated charger: Allows easy charging without external devices
Turning radius: Small turning radius of 1481 mm or 1450 mm, ideal for tight spaces
Operation: Simple control via lever on the handle for intuitive operation.
Application: Ideal for a variety of applications, from high racks to narrow storage aisles.

Features

Easy charging

Simply plug the onboard charger into a standard power outlet.

High maneuverability

The small turning radius makes it easier to maneuver in tight areas.

intuitive operation

Fully electric lifting and driving - simply operate the corresponding levers on the polyamide handle.

elektro-hochhubwagen smart-l 2,6-3,5m für 1000-1500kg 7

Full Power

Powerful thanks to the two 80 Ah lead-acid batteries.

Stable duplex mast

Raise goods safely up to 3500mm.

Technical data

General

Capacity

1500 kg

Capacity at maximum lift

1300 kg

Weight

657 kg

Forklift licence needed

no

Sound level EN-12053

70 dB

Chassis surface

plastic

Seal

CE

Min. radius curve

1481 mm

Warranty

5 years warranty Plus

SKU

10010444-2594

Brand

Pallit

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

210 mm

Steering wheel width

70 mm

Load roller wheel diameter

84 mm

Fork roller width

93 mm

Lift

Lift height

2600 mm

Free lift

no

Lift motor power

2,2 kW

Lift speed, unladen

0,13 m/s

Lowering speed, unladen

0,16 m/s

Mast type

Duplex

Lift type

electric

Drive

Drive motor power

0,75 kW

Travel speed, unladen

4 km/h

Gradeability, unladen

10 %

Max. gradeability, laden

5 %

Drive

electric

Brake

electromagnetic brake

Battery

Battery type

lead batteries

Operating time

3 h

Battery charging time

2,5 h

Battery capacity

100 Ah | 80 Ah

Voltage

24 V

Battery voltage

12 V

Battery quantity

2

Battery weight

26 kg

Battery charger

integrated charger

Delivery

carrier

Delivered as

auf Palette

Delivery requirements

Access routes accessible for lorry (40 t)

Links

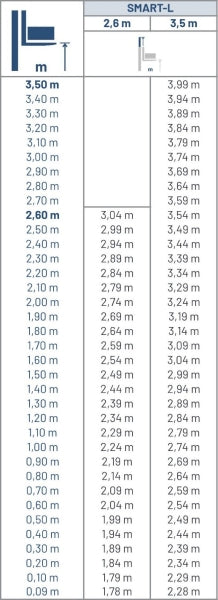

Mast height table

Load center diagram

Product brochure

Product manual

Dimensions

Fork length

1150 mm

l
Lift height

2600 mm

h3
Load centre

600 mm

c
Lift height, effective

2514 mm

h12
Height, lowered

1780 mm

h1
Height, extended

3037 mm

h4
Tiller height

1150 mm

h14
Length

1750 mm

l1
Ground clearance

32 mm

m2
Ground clearance, outer

86 mm

h13
Fork height

60 mm

s
Wheelbase

1147 mm

y

Width

800 mm

b1
Fork width, outer distance

685 mm

b5
Fork width, single fork

180 mm

e
Fork roller, wheel track

515 mm

b10
Steering wheel, wheel track

550 mm

b11
Aisle width for 1200x800

2324 mm

Ast
Turning radius

1481 mm

Wa

Capacity

Fork length

Height, lowered

Lift height

Weight

Wheels material

Battery capacity

Battery type

Load centre

Max. gradeability, laden

Operating time

Warranty

Free delivery
